Experiences in Space Research for more than 20 years
|
|

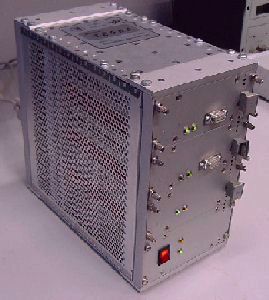

Advanced TEGRA (2000)

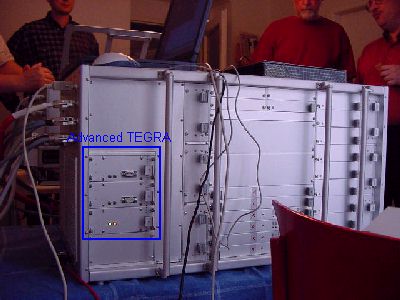

as part of the TITUS Multi Purpose Platform equipment
- Up to 40 universal channels (single ended or differential)
- 18 bit resolution (0.1 µV)
- Programmable sample rates: 0,125 - 64 s
- Serial communication interface
- Microgravitation measurement module
- Used in ground experiments 2000 and 2001
TEGRA (1995)
as part of the older TITUS equipment
- 10 universal channels (single ended or differential)
- 18 bit resolution (0.1 µV)
- Fixed sample rate: 1 s
- Serial communication interface
- Microgravitation measurement module
- Used in space experiments 1995, 1997, 1999 MIR
TES (1992)
- 2 differential, 4 single ended channels
- 12 bit resolution (0.1 µV / 10 µV)
- Fixed sample rates: 1 s or 2 s
- 512 k EEPROM data memory
- Changeable data module (memory, CPU and interface)
- used in space experiments 1992 MIR
ARP (1984 and 1987)
- Probe with 16 thermocouples
- 13 bit resolution, 5 µV (0,15 K)
- Linearized °C display
- Manually programmable sample rate
- Changeable data memory modul (EPROM 2 .. 32 kByte)
- Used in space experiments 1984 Sojus / Salut ; 1987 MIR
IMITATOR (1981)
- 10 directly connected thermocouples
- 3 digits resolution, 40 µV (1 K)
- Manual sample rate
- Battery power supply
- Full CMOS-design
- Data display, no memory
- Used in space experiments 1981 Sojus / Salut
Contacs
Director: Prof. Dr. Beate Meffert
Humboldt-Universität zu Berlin, Institut für Informatik
Working group: Manfred Günther, Lothar Heese, Gerald Kell, Thomas Morgenstern, F. Winkler
